Generating An Interactive Craft Sketch File From An InVision Prototype In Lucee CFML 5.3.6.61
At InVision, one of the tools that we offer is Craft / Craft-Manager, which provides a suite of functionality for generating interactive prototypes in Sketch and Photoshop. In recent years, the Sketch open file-format has evolved into a ZIP archive consisting of images and JSON (JavaScript Object Notation) data files. As such, I thought it would be a fun experiment to see if I could generate a Sketch file that includes Craft interactivity from the data that I can retrieve from an InVision prototype. And, because ColdFusion is the bee's knees, I'm going to do it using Lucee CFML 5.3.6.61.
CAUTION: I am not very familiar with Sketch, or Craft - it's not the team that I work on. As such, the entirety of this experiment is based on reverse-engineering - not some core understanding that I had prior to this post. So, please take anything I say here with a grain of salt.
The Sketch file-format is an "open standard" which means that it is documented in public. However, I could not make heads-or-tails of their documentation, which seemed to just be a series of circular references to different GitHub repositories. As such, I started this experiment by creating a Sketch file with the desired characteristics; and then, unzipping the Sketch file and examining the contents.
Even the most basic Sketch file has loads of data, much of which appears to be optional. However, since I couldn't understand how to best leverage the documented file-format, I just kept deleting parts of the data and checking to see if the Sketch file was still valid (ie, that I could open the file in Sketch and sync it to InVision using Craft).
Once I had what I thought was the bare-minimum of Sketch data files, I created a "source" directory that incorporated the type of data that I can get out of an InVision prototype. This included a set of Images and the following JSON file which has 1 prototype, 5 screens, and a myriad of hotspots that link the screens together using simple click-transitions:
| { | |
| "prototype": { | |
| "id": 1, | |
| "name": "Steps Testing" | |
| }, | |
| "screens": [ | |
| { "id": 1, "name": "Step-1", "clientFilename": "step-1.png", "imageUrl": "./prototype/images/step-1.png", "width": 600, "height": 531 }, | |
| { "id": 2, "name": "Step-2", "clientFilename": "step-2.png", "imageUrl": "./prototype/images/step-2.png", "width": 600, "height": 531 }, | |
| { "id": 3, "name": "Step-3", "clientFilename": "step-3.png", "imageUrl": "./prototype/images/step-3.png", "width": 600, "height": 531 }, | |
| { "id": 4, "name": "Step-4", "clientFilename": "step-4.png", "imageUrl": "./prototype/images/step-4.png", "width": 600, "height": 531 }, | |
| { "id": 5, "name": "Step-5", "clientFilename": "step-5.png", "imageUrl": "./prototype/images/step-5.png", "width": 600, "height": 531 } | |
| ], | |
| "hotspots": [ | |
| { "screenID": 1, "targetScreenID": 1, "height": 33, "y": 87, "width": 29, "x": 371 }, | |
| { "screenID": 1, "targetScreenID": 2, "height": 34, "y": 87, "width": 33, "x": 405 }, | |
| { "screenID": 1, "targetScreenID": 3, "height": 33, "y": 88, "width": 26, "x": 445 }, | |
| { "screenID": 1, "targetScreenID": 4, "height": 32, "y": 88, "width": 31, "x": 476 }, | |
| { "screenID": 1, "targetScreenID": 5, "height": 32, "y": 88, "width": 32, "x": 512 }, | |
| { "screenID": 1, "targetScreenID": 2, "height": 51, "y": 438, "width": 101, "x": 445 }, | |
| { "screenID": 2, "targetScreenID": 1, "height": 33, "y": 87, "width": 29, "x": 371 }, | |
| { "screenID": 2, "targetScreenID": 2, "height": 34, "y": 87, "width": 33, "x": 405 }, | |
| { "screenID": 2, "targetScreenID": 3, "height": 33, "y": 88, "width": 26, "x": 445 }, | |
| { "screenID": 2, "targetScreenID": 4, "height": 32, "y": 88, "width": 31, "x": 476 }, | |
| { "screenID": 2, "targetScreenID": 5, "height": 32, "y": 88, "width": 32, "x": 512 }, | |
| { "screenID": 2, "targetScreenID": 3, "height": 49, "y": 437, "width": 104, "x": 443 }, | |
| { "screenID": 3, "targetScreenID": 1, "height": 33, "y": 87, "width": 29, "x": 371 }, | |
| { "screenID": 3, "targetScreenID": 2, "height": 34, "y": 87, "width": 33, "x": 405 }, | |
| { "screenID": 3, "targetScreenID": 3, "height": 33, "y": 88, "width": 26, "x": 445 }, | |
| { "screenID": 3, "targetScreenID": 4, "height": 32, "y": 88, "width": 31, "x": 476 }, | |
| { "screenID": 3, "targetScreenID": 5, "height": 32, "y": 88, "width": 32, "x": 512 }, | |
| { "screenID": 3, "targetScreenID": 4, "height": 53, "y": 435, "width": 105, "x": 443 }, | |
| { "screenID": 4, "targetScreenID": 1, "height": 33, "y": 87, "width": 29, "x": 371 }, | |
| { "screenID": 4, "targetScreenID": 2, "height": 34, "y": 87, "width": 33, "x": 405 }, | |
| { "screenID": 4, "targetScreenID": 3, "height": 33, "y": 88, "width": 26, "x": 445 }, | |
| { "screenID": 4, "targetScreenID": 4, "height": 32, "y": 88, "width": 31, "x": 476 }, | |
| { "screenID": 4, "targetScreenID": 5, "height": 32, "y": 88, "width": 32, "x": 512 }, | |
| { "screenID": 4, "targetScreenID": 5, "height": 52, "y": 435, "width": 103, "x": 445 }, | |
| { "screenID": 5, "targetScreenID": 1, "height": 33, "y": 87, "width": 29, "x": 371 }, | |
| { "screenID": 5, "targetScreenID": 2, "height": 34, "y": 87, "width": 33, "x": 405 }, | |
| { "screenID": 5, "targetScreenID": 3, "height": 33, "y": 88, "width": 26, "x": 445 }, | |
| { "screenID": 5, "targetScreenID": 4, "height": 32, "y": 88, "width": 31, "x": 476 }, | |
| { "screenID": 5, "targetScreenID": 5, "height": 32, "y": 88, "width": 32, "x": 512 }, | |
| { "screenID": 5, "targetScreenID": 1, "height": 54, "y": 434, "width": 104, "x": 443 } | |
| ] | |
| } |
From this data, each screen will be translated into an artboard. And, each hotspot will be translated into a rect that links one artboard to another. Each artboard will consist of a single layer for the screen images; and then, N-additional layers for the N-hotspots that are associated with a given screen.
The algorithm for this ended-up being quite brute-force. There's not much that's elegant about it - it's just translating one data format into another. The trickiest part of this is that I couldn't use Lucee's native compress() function to generate the .sketch ZIP archive.
Well, that's not entirely true - when using Lucee's compress() function, I was able to generate the Sketch file; and, Sketch could open it. However, Craft-Manager couldn't expand the .sketch file during the syncing process. As such, I had to use the zip Command-Line tool that I invoked using CFExecute from a working-directory.

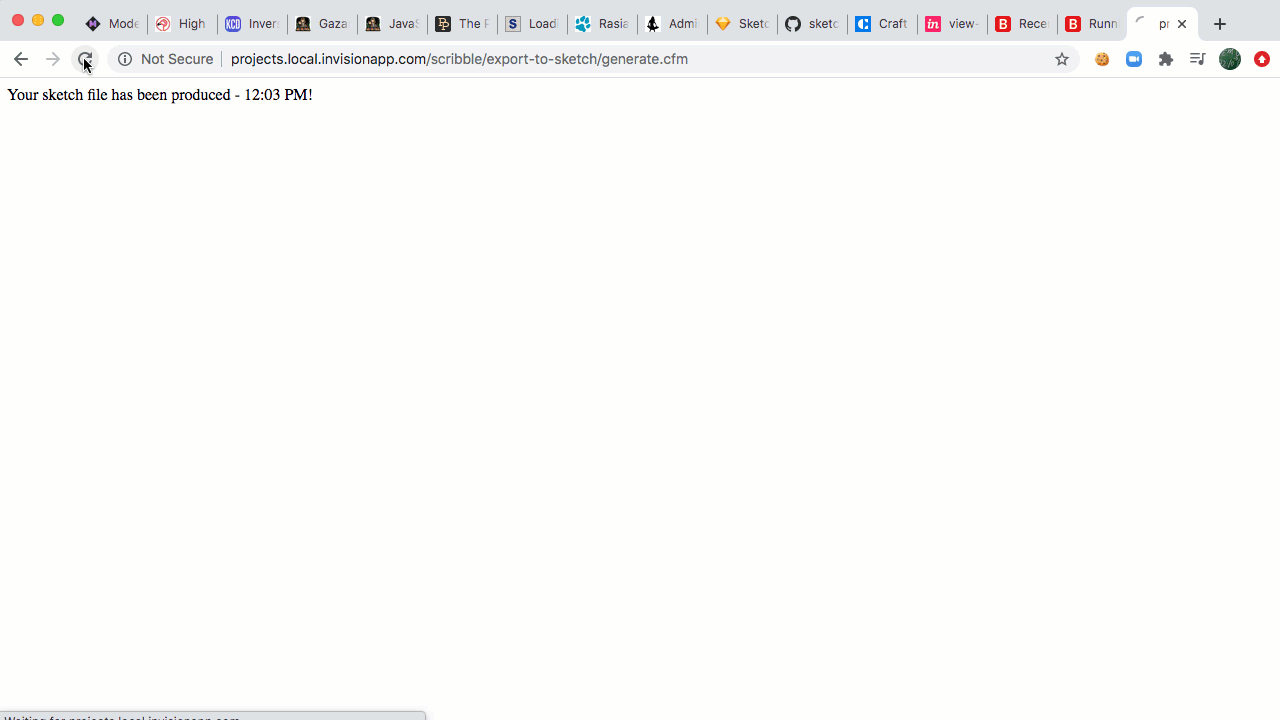

Before we look at the code, let's look at the outcome - in the following GIF, I'm going to:
- Generate a
prototype.sketchfile from the source data. - Open it in Sketch.
- Sync it to InVision using Craft.
- Open up the new prototype in the InVision web-app.
How cool is that?! As you can see, I am generating an interactive Sketch file using my prototype data. Then, I'm syncing that interactive Sketch file up to InVision using Craft / Craft-Manager. And once synced, we can see that the resultant web prototype has hotspots!
Ok, here's the ColdFusion code behind this - it's several hundred lines. I've tried to break it down into steps at the top, each of which is implemented by a ColdFusion User Defined Function (UDF) farther down in the file. I hope this lends well to readability:
| <cfscript> | |
| withWorkingDirectory( | |
| ( workingDirectory ) => { | |
| // All of the Sketch data and assets will go into the "zip directory", which | |
| // will then be zipped-up at the end. A "Sketch" file is really just a ZIP | |
| // archive with a different file-extension. The Sketch archive / file format | |
| // consists of several known directories and JSON configuration files. | |
| var sketchDirectory = ( workingDirectory & "/sketch-archive" ); | |
| var imagesDirectory = ( sketchDirectory & "/images" ); | |
| var pagesDirectory = ( sketchDirectory & "/pages" ); | |
| directoryCreate( sketchDirectory ); | |
| directoryCreate( imagesDirectory ); | |
| directoryCreate( pagesDirectory ); | |
| // This is our prototype demo data - it has screens and hotspots (for the | |
| // sake of simplicity, I'm just exploring CLICK hotspots). | |
| var sourceData = deserializeJson( fileRead( "./prototype/data.json" ) ); | |
| // STEP 1: Copy the screen images into the "images" folder within the Sketch | |
| // archive. As the images are copied, they are renamed to include an MD5 hash | |
| // of the byte-content. | |
| // -- | |
| // CAUTION: I am not actually sure if the hash used for the filename is a | |
| // hash of the binary content - that's just a guess on my part. I just know | |
| // that is is NOT a UUID, like most of the other IDs in the Sketch data. | |
| var imagesIndex = copyScreensToImages( imagesDirectory, sourceData.screens ); | |
| // STEP 2: Translate the source data into the master Page data. We will use | |
| // the Page data to generate the Page JSON as well as all of the other JSON | |
| // files. | |
| var pageData = getPageData( sourceData, imagesIndex ); | |
| var pageJsonFilePath = ( pagesDirectory & "/" & pageData.do_objectID & ".json" ); | |
| fileWrite( pageJsonFilePath, serializeJson( pageData ) ); | |
| // STEP 3: Translate the Page data into User data. | |
| var userData = getUserData( pageData ); | |
| var userJsonFilePath = ( sketchDirectory & "/user.json" ); | |
| fileWrite( userJsonFilePath, serializeJson( userData ) ); | |
| // STEP 4: Translate Page data into Meta data. | |
| var metaData = getMetaData_( pageData ) | |
| var metaJsonFilePath = ( sketchDirectory & "/meta.json" ); | |
| fileWrite( metaJsonFilePath, serializeJson( metaData ) ); | |
| // STEP 5: Translate Page data into Document data. | |
| var documentData = getDocumentData( pageData ); | |
| var documentJsonFilePath = ( sketchDirectory & "/document.json" ); | |
| fileWrite( documentJsonFilePath, serializeJson( documentData ) ); | |
| // STEP 6: Compress the sketch-source data into an actual Sketch file. | |
| compressSketchDirectory( sketchDirectory, expandPath( "./prototype.sketch" ) ); | |
| } | |
| ); | |
| echo( "<p> Your sketch file has been produced - #timeFormat( now() )#! </p>" ); | |
| // ------------------------------------------------------------------------------- // | |
| // ------------------------------------------------------------------------------- // | |
| /** | |
| * I compress the Sketch source documents into a Sketch file, which is really just a | |
| * ZIP archive with a different file-extension. | |
| * | |
| * @sourceDirectory I am the directory of data to compress. | |
| * @zipFilepath I am the path at which to generate the ZIP file. | |
| */ | |
| private void function compressSketchDirectory( | |
| required string sourceDirectory, | |
| required string zipFilepath | |
| ) { | |
| // In order to create a shallow ZIP with a local directory structure, we have to | |
| // execute the "zip" binary from WITHIN the SOURCE DIRECTORY. | |
| executeZipFromDirectory( | |
| sourceDirectory, | |
| [ | |
| // Regulate the speed of compression: 0 means NO compression. This is | |
| // setting the compression method to STORE, as opposed to DEFLATE, which | |
| // is the default method. Since images are already compressed, there's no | |
| // need to waste CPU trying to compress them more. | |
| // -- | |
| // NOTE: This also means that the JSON files will be stored without | |
| // compression as well. But, since the weight of the JSON files is likely | |
| // to be much smaller than the cumulative weight of all the screen | |
| // images, I think this will be OK - we can always optimize for this in | |
| // the future. | |
| "-0", | |
| // Recurse the source directory. | |
| "-r", | |
| zipFilepath, | |
| // Define the INPUT file - NOTE that this path is RELATIVE TO THE WORKING | |
| // DIRECTORY! By using a relative directory, it allows us to generate a | |
| // ZIP file in which the relative paths become the entries in the | |
| // resultant archive. | |
| "./" | |
| ] | |
| ); | |
| } | |
| /** | |
| * I copy the given screens into the images directory, renaming them based on an MD5 | |
| * hash of the binary content. I return an index mapping of the screen ID to the new | |
| * MD5-based filename. | |
| * | |
| * @imagesDirectory I am the target directory. | |
| * @screens I am the screens to be copied. | |
| */ | |
| private struct function copyScreensToImages( | |
| required string imagesDirectory, | |
| required array screens | |
| ) { | |
| var imagesIndex = {}; | |
| for ( var screen in screens ) { | |
| // First, let's copy the image to the target location. | |
| // -- | |
| // NOTE: For this demo, I could have read the binary content first; however, | |
| // in a "production" setting, these images would be on a remote storage | |
| // server. As such, it would make sense to write them to the local disk | |
| // first and then read the contents (or event use an ETag). | |
| fileCopy( screen.imageUrl, ( imagesDirectory & "/" & screen.clientFilename ) ); | |
| // Generate the new MD5-based filename. | |
| var md5Hash = hash( fileReadBinary( ( imagesDirectory & "/" & screen.clientFilename ) ) ); | |
| var fileExtension = listLast( screen.clientFilename, "." ); | |
| var imageClientFilename = ( md5Hash & "." & fileExtension ); | |
| // Rename the temporary file. | |
| fileMove( | |
| ( imagesDirectory & "/" & screen.clientFilename ), | |
| ( imagesDirectory & "/" & imageClientFilename ) | |
| ); | |
| imagesIndex[ screen.id ] = imageClientFilename; | |
| } | |
| return( imagesIndex ); | |
| } | |
| /** | |
| * I execute the zip command-line utility from the given WORKING DIRECTORY using the | |
| * given arguments. If error-output is returned from the utility, an error with the | |
| * details is thrown. | |
| * | |
| * @workingDirectory I am the working directory from which to execute the zip command. | |
| * @zipArguments I am the command-line arguments for zip. | |
| */ | |
| private string function executeZipFromDirectory( | |
| required string workingDirectory, | |
| required array zipArguments | |
| ) { | |
| // The Shell Script that's going to proxy the ZIP command is expecting the | |
| // working directory to be the first argument. As such, let's create a normalized | |
| // set of arguments for our proxy that contains the working directory first, | |
| // followed by the rest of the commands. | |
| var normalizedArguments = [ workingDirectory ] | |
| .append( "zip" ) | |
| .append( zipArguments, true ) | |
| ; | |
| execute | |
| name = expandPath( "../../../cfbin/execute_from_directory.sh" ) | |
| arguments = normalizedArguments.toList( " " ) | |
| variable = "local.successOutput" | |
| errorVariable = "local.errorOutput" | |
| timeout = 30 | |
| terminateOnTimeout = true | |
| ; | |
| if ( len( errorOutput ?: "" ) ) { | |
| throw( | |
| type = "SketchExport.ZipError", | |
| message = "The zip command-line proxy returned error output.", | |
| detail = "Error: #errorOutput#", | |
| extendedInfo = "Working directory: #workingDirectory#, Command-line arguments: #serializeJson( zipArguments )#" | |
| ); | |
| } | |
| return( successOutput ?: "" ); | |
| } | |
| /** | |
| * I build the Document JSON payload from the master Page data. | |
| * | |
| * @pageData I am the master Page data that has been compiled from the prototype. | |
| */ | |
| private struct function getDocumentData( required struct pageData ) { | |
| return({ | |
| "_class": "document", | |
| "do_objectID": createUUID(), | |
| "pages": [ | |
| { | |
| "_class": "MSJSONFileReference", | |
| "_ref_class": "MSImmutablePage", | |
| "_ref": "pages/#pageData.do_objectID#" | |
| } | |
| ] | |
| }); | |
| } | |
| /** | |
| * I build the MetaData JSON payload from the master Page data. | |
| * | |
| * NOTE: The (_) at the end of the function name is to prevent collision with the | |
| * built-in ColdFusion function. | |
| * | |
| * @pageData I am the master Page data that has been compiled from the prototype. | |
| */ | |
| private struct function getMetaData_( required struct pageData ) { | |
| var commitID = createUUID(); | |
| var artboards = pageData.layers.reduce( | |
| ( reduction, layer ) => { | |
| reduction[ layer.do_objectID ] = { | |
| name: layer.name | |
| }; | |
| return( reduction ); | |
| }, | |
| {} | |
| ); | |
| return({ | |
| "commit": commitID, | |
| "pagesAndArtboards": { | |
| "#pageData.do_objectID#": { | |
| "name": pageData.name, | |
| "artboards": artboards | |
| } | |
| }, | |
| "version": 123, | |
| "compatibilityVersion": 99, | |
| "app": "com.bohemiancoding.sketch3", | |
| "created": { | |
| "commit": "#commitID#", | |
| "appVersion": "63.1", | |
| "build": 92452, | |
| "app": "com.bohemiancoding.sketch3", | |
| "compatibilityVersion": 99, | |
| "version": 123 | |
| }, | |
| "appVersion": "63.1", | |
| "build": 92452 | |
| }); | |
| } | |
| /** | |
| * I build the Page JSON payload from the given source data and images index. | |
| * | |
| * @sourceData I am the prototype source data. | |
| * @imagesIndex I am the mapping of screen IDs to Sketch image filenames. | |
| */ | |
| private struct function getPageData( | |
| required struct sourceData, | |
| required struct imagesIndex | |
| ) { | |
| var prototype = sourceData.prototype; | |
| var screens = sourceData.screens; | |
| var hotspots = sourceData.hotspots; | |
| // The overall structure of our Sketch data is going to be fairly simple. I've | |
| // attempted to strip-out everything that didn't seem necessary through trial- | |
| // and-error; basically, I just kept removing properties and then running the | |
| // demo to see if the Sketch file was still valid and could be synced using | |
| // Craft-Manager. | |
| // The Sketch file will consist of a single Page. | |
| var page = { | |
| "_class": "page", | |
| "do_objectID": createUUID(), | |
| "name": prototype.name, | |
| "layers": nullValue() // Populated below. | |
| }; | |
| // Each screen is going to be added to the Sketch document as an individual | |
| // artboard. The goal here is that the user will eventually "override" the | |
| // artboard with more granular shapes. But, for now, each artboard will | |
| // consist of a single image object with overlaid rectangle objects that acts as | |
| // hotspot-links between artboards. We have a bit of a chicken-and-egg situation | |
| // in so much as the hotspots link to "artboards"; but, we don't have artboards | |
| // yet. As such, let's create a separate mapping of screen IDs to artboards so | |
| // that we know how to map the hotspots afterwards. | |
| var artboardIdMapping = {}; | |
| for ( var screen in screens ) { | |
| artboardIdMapping[ screen.id ] = createUUID(); // The artboard ID. | |
| } | |
| // We're going to space each artboard on a single horizontal axis with 100px | |
| // spacing between each. As such, we need to keep track of the running offset. | |
| var nextArtboardOffset = 0; | |
| page.layers = screens.map( | |
| ( screen ) => { | |
| // The first layer in the artboard is always the screen image. We will | |
| // also be adding the hotspots as individual layers; but, that will be in | |
| // a later step. | |
| var bitmap = { | |
| "_class": "bitmap", | |
| "do_objectID": createUUID(), | |
| "name": screen.clientFilename, | |
| "frame": { | |
| "_class": "rect", | |
| "height": screen.height, | |
| "width": screen.width, | |
| "x": 0, | |
| "y": 0 | |
| }, | |
| "image": { | |
| "_class": "MSJSONFileReference", | |
| "_ref_class": "MSImageData", | |
| "_ref": "images/#imagesIndex[ screen.id ]#" | |
| } | |
| }; | |
| // Get the hotspots that live on this screen and map them to rects. | |
| var rects = hotspots | |
| .filter( | |
| ( hotspot ) => { | |
| return( hotspot.screenID == screen.id ); | |
| } | |
| ) | |
| .map( | |
| ( hotspot, i ) => { | |
| // NOTE: For this demo, we're just implementing simple Click | |
| // links. I am not sure at this time how the following data | |
| // would change if the links get more complicated. | |
| return({ | |
| "_class": "rectangle", | |
| "do_objectID": createUUID(), | |
| "name": "Hotspot #i#", | |
| "userInfo": { | |
| "com.invision.prototype": { | |
| "closeOnClickOutside": 1, | |
| "stayOnTargetScreen": 0, | |
| "maintainScrollPositionAfterRedirect": 0, | |
| "openURLInNewWindow": 0, | |
| "reverseTransitionOnClose": 1, | |
| "gesture": 0, | |
| "overlayPosition": 0, | |
| "scrollToPosition": 0, | |
| "maintainScrollPositionAfterGesture": 0, | |
| "smoothScrolling": 0, | |
| "overlayTransition": 0, | |
| "redirectAfter": 0, | |
| "componentType": "SRLink", | |
| "backgroundOpacity": 0, | |
| "linkType": 0, | |
| "transition": 0, | |
| "targetArtboardID": artboardIdMapping[ hotspot.targetScreenID ], | |
| "fixOverlayPosition": 1 | |
| } | |
| }, | |
| "frame": { | |
| "_class": "rect", | |
| "height": hotspot.height, | |
| "width": hotspot.width, | |
| "x": hotspot.x, | |
| "y": hotspot.y | |
| } | |
| }); | |
| } | |
| ) | |
| ; | |
| var arboardOffset = nextArtboardOffset; | |
| nextArtboardOffset += ( screen.width + 100 ); | |
| return({ | |
| "_class": "artboard", | |
| "do_objectID": artboardIdMapping[ screen.id ], | |
| "name": screen.name, | |
| "frame": { | |
| "_class": "rect", | |
| "height": screen.height, | |
| "width": screen.width, | |
| "x": arboardOffset, | |
| "y": 0 | |
| }, | |
| "layers": rects.prepend( bitmap ) | |
| }); | |
| } | |
| ); | |
| return( page ); | |
| } | |
| /** | |
| * I build the User JSON payload from the master Page data. | |
| * | |
| * @pageData I am the master Page data that has been compiled from the prototype. | |
| */ | |
| private struct function getUserData( required struct pageData ) { | |
| return({ | |
| "#pageData.do_objectID#": { | |
| "scrollOrigin": "{50, 50}", | |
| "zoomValue": 0.5 | |
| } | |
| }); | |
| } | |
| /** | |
| * I create and manage a temporary working directory. The working directory is passed | |
| * to the given callback; and return value is bubbled-up; and then, the working | |
| * directory is deleted. | |
| * | |
| * @callback I am the callback to invoke with the working directory. | |
| */ | |
| public any function withWorkingDirectory( required function callback ) { | |
| var workingDirectory = expandPath( "./temp/#createUniqueID()#" ); | |
| directoryCreate( workingDirectory ); | |
| try { | |
| return( callback( workingDirectory ) ); | |
| } finally { | |
| directoryDelete( workingDirectory, true ); // True = recurse. | |
| } | |
| } | |
| </cfscript> |
I tried to leave a lot of comments in the code, so I'm not going to go into it any further.
The goal here would be to give users a way to "kick start" a Craft-based prototyping workflow using an existing web-prototype. This would give the user an avenue to streamline their workflow without having to do a big-bang rebuild of their entire prototype.
If nothing else, this was just a fun experiment in ColdFusion. It's really cool that the Sketch file is just an open format - that makes interoperability really exciting! I do wish the documentation was a bit easier to read; but, I suppose it's just all auto-generated.
Want to use code from this post? Check out the license.
Reader Comments
